Pallet Jack Load Wheel (500 - 1000KG)
Komada Pallet Jack Load Wheels, its nylon / PU material provides a load capacity of up to 1000kg and are highly wear-resistant.
PU/Nylon Pallet Jack Load Wheel 600KG – 1000KG
KOMADA Load Wheels are high-quality replacement parts designed for the demanding environment of Pallet Jacks and similar heavy-duty equipment. Available in both Polyurethane (PU) and Nylon materials, these wheels offer exceptional durability and high load capacities, ranging from to per wheel. The choice between materials allows users to customize their equipment for specific operational needs: Nylon for maximum rigidity and resistance, or PU for floor protection and quieter operation. Upgrading to these heavy-duty wheels ensures smooth and efficient handling, reduces push effort, and guarantees a long service life.

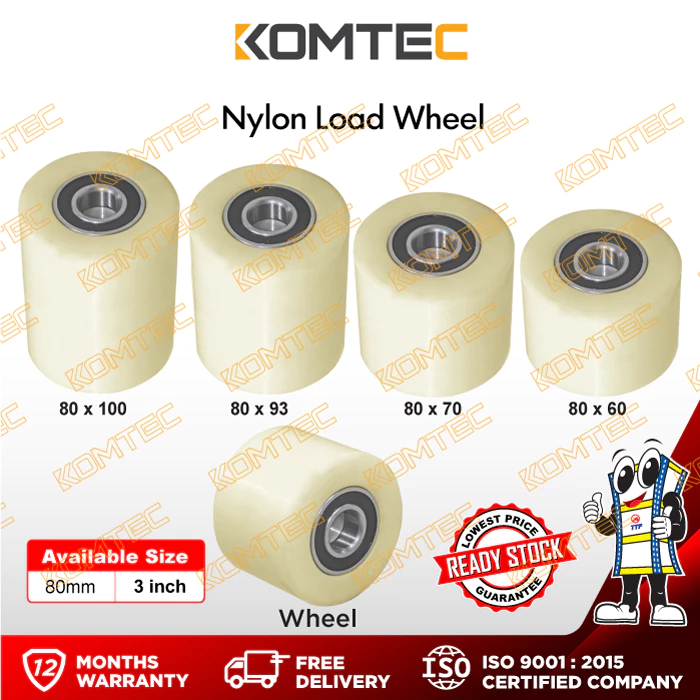

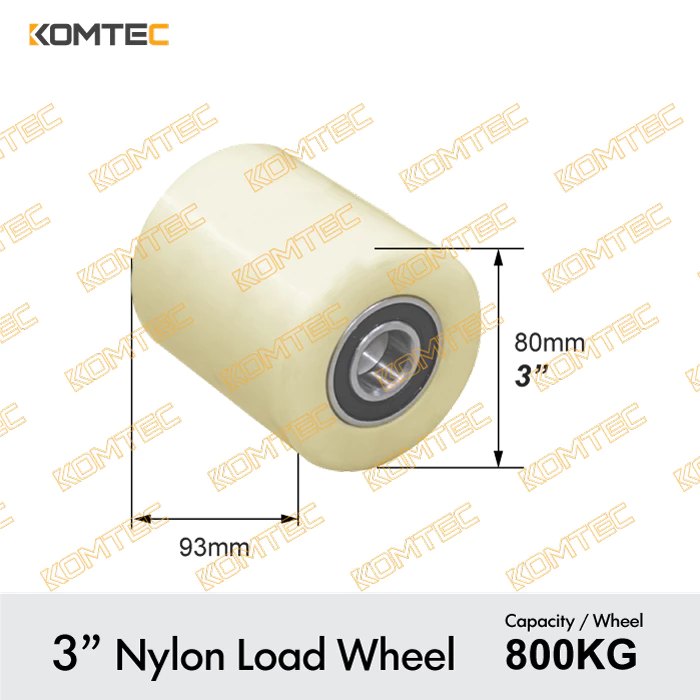

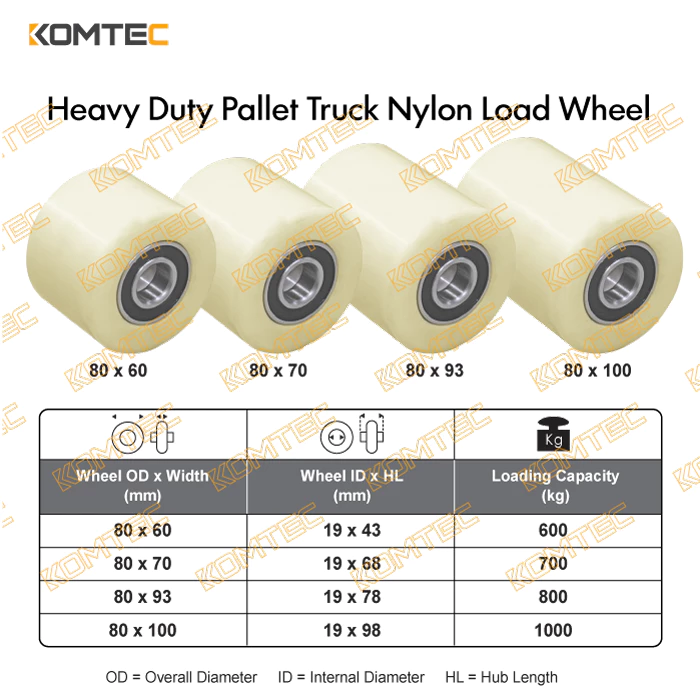

Nylon Wheel Product Specification
| Wheel OD x Width (mm) | Wheel ID x HL (mm) | Loading Capacity (kg) |
|---|---|---|
|
80 x 60 |
19 x 43 |
600 |
|
80 x 70 |
19 x 68 |
700 |
|
80 x 93 |
19 x 78 |
800
|
|
80 x 100 |
19 x 98 |
1000 |

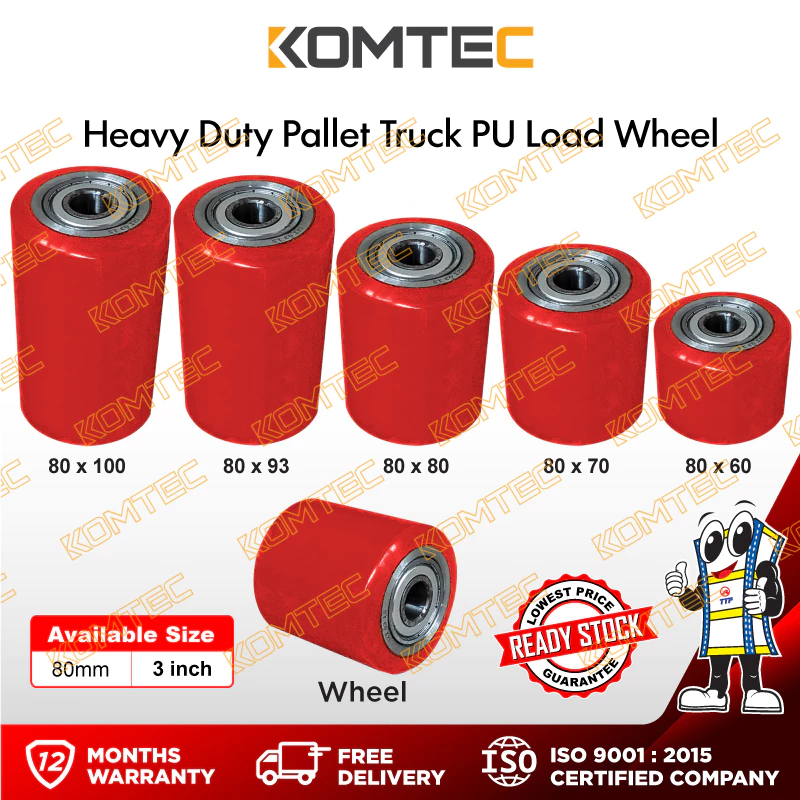

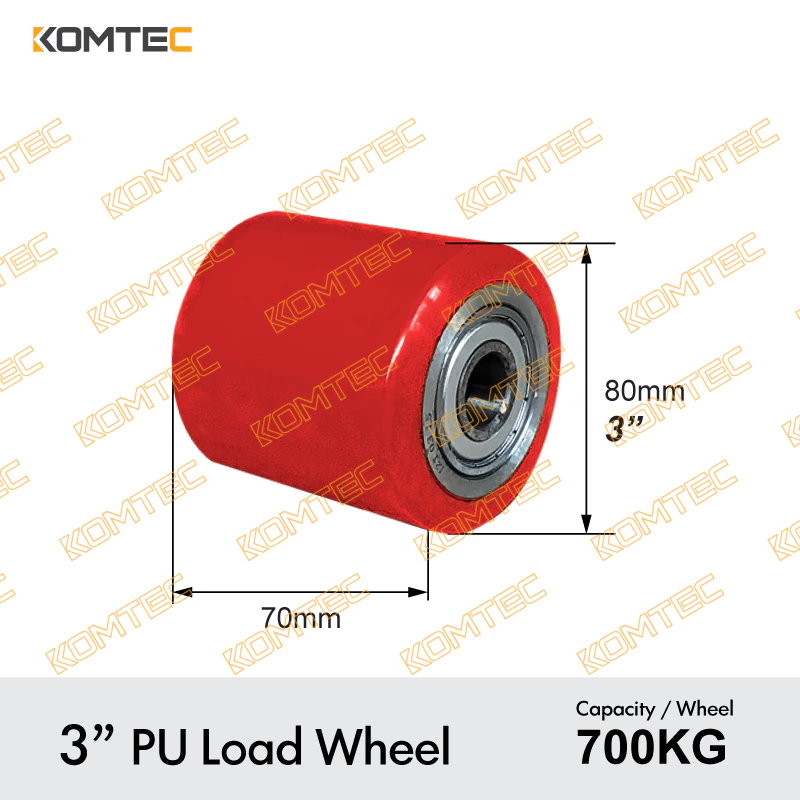

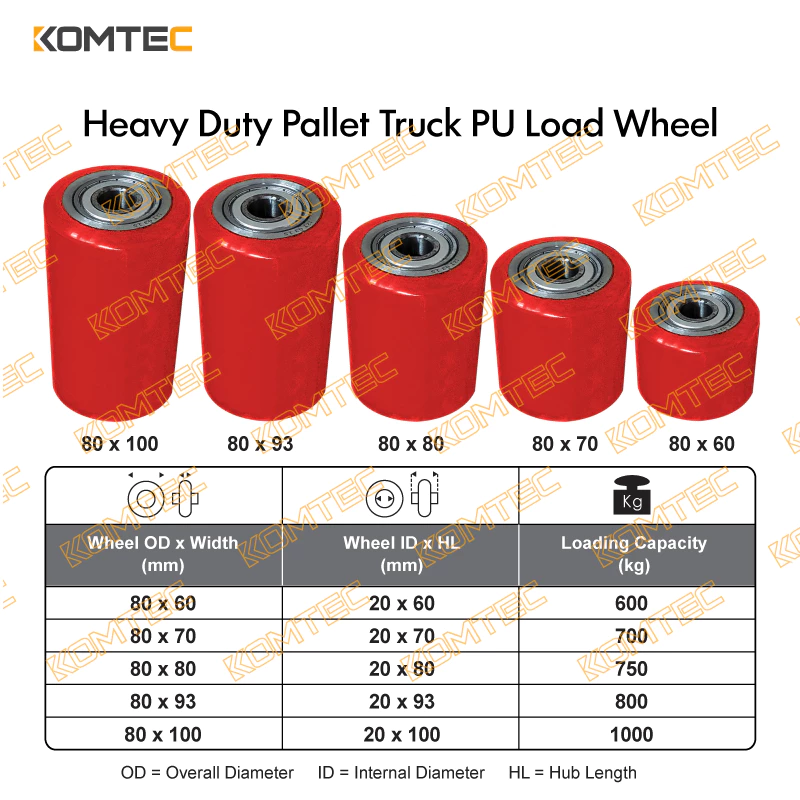

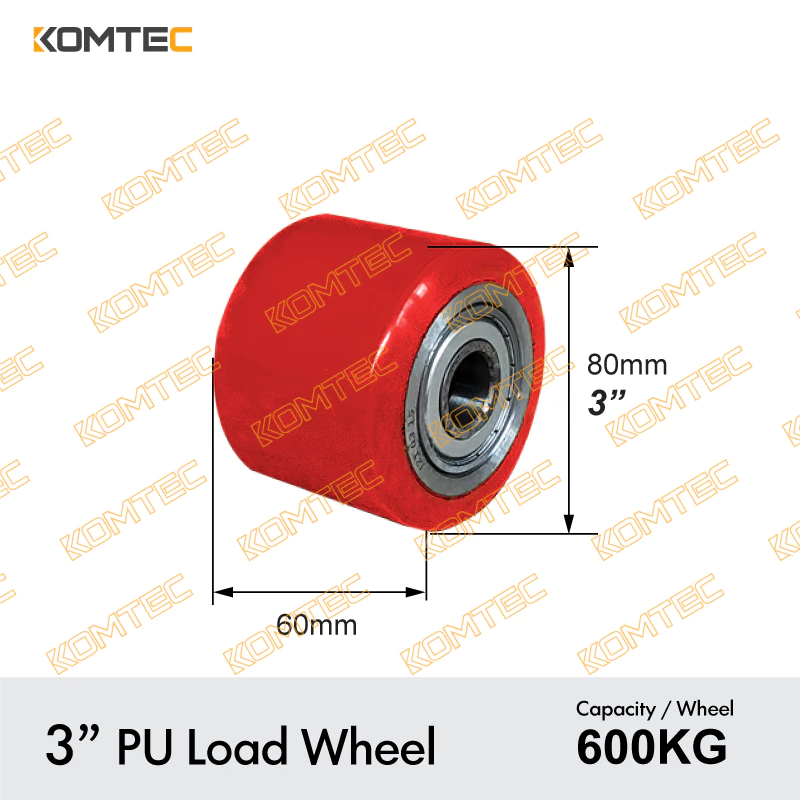

PU Wheel Product Specification
| Wheel OD x Width (mm) | Wheel ID x HL (mm) | Loading Capacity (kg) |
|---|---|---|
|
80 x 60 |
20 x 60 |
600 |
|
80 x 70 |
20 x 70 |
700 |
|
80 x 80 |
20 x 80 |
750 |
|
80 x 93 |
20 x 93 |
20 x 100 |
|
80 x 100 |
80 x 100 |
1000 |
Key Features
PU or Nylon Material Options: Choose PU for cushioned, non-marking, and silent operation or Nylon for superior hardness, chemical resistance, and minimal rolling resistance.
Heavy-Duty Capacity (Up to 1000KG): Built to withstand frequent, heavy use, reliably supporting the maximum loads of industrial pallet jacks.
Smooth & Efficient Handling: Precision design reduces push effort and friction, significantly improving the overall performance and efficiency of the pallet jack.
Durable Construction: Engineered for a long service life, minimizing the need for frequent maintenance and replacement.
Floor Protection (PU): PU wheels are ideal for workplaces that require quiet environments (hospitals, offices) and floors to be protected from marks and scratches.
Hassle-Free Replacement: Manufactured to standard specifications for easy, compatible upgrades or replacements on most pallet jacks.
Why Choose KOMADA Load Wheels?
KOMADA Load Wheels are the superior choice for maximizing your pallet jack’s efficiency and lifespan. The core advantage is the flexibility of choosing between Nylon for ultimate resistance or PU for high capacity with floor protection and silent operation. This heavy-duty design ensures smooth handling and significantly reduces push effort, translating directly into increased operator productivity and a strong ROI through extended equipment life.
