1500KG | Electric Stacker WS15-B
Komada WS15-B Fully Powered Stacker lifts up to 4.0 m with 1.5 ton capacity. Standard lift speed, Light Grey & Black.

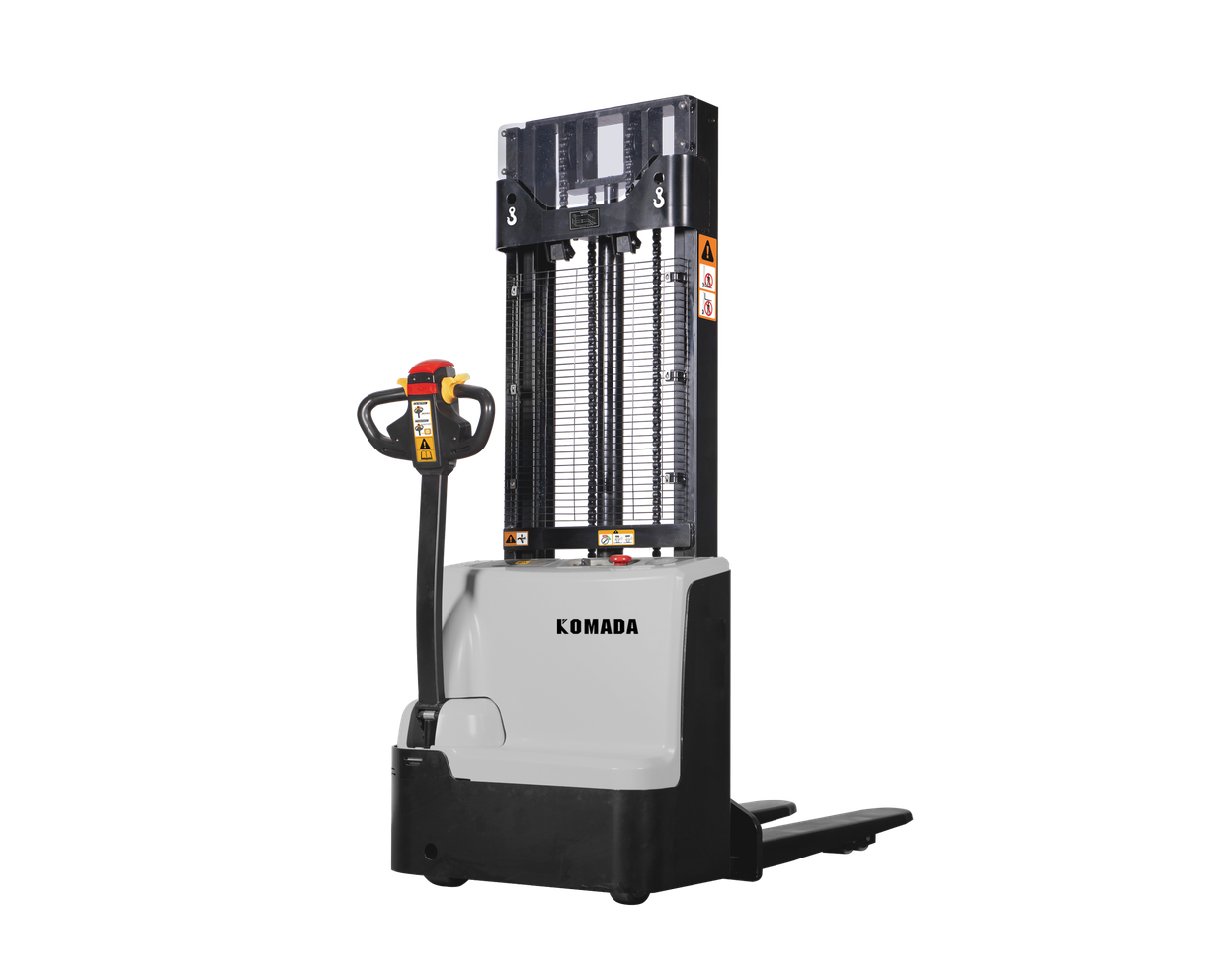

WS15-B 1500kg Electric Stacker (2.0 – 4.0 m Lift)
The KOMADA WS15-B is a 1500kg electric stacker with fully powered drive and lift, and six lift heights from 2.0 m to 4.0 m. Because both driving and lifting are battery powered, operators stack pallets onto racking without pushing or pumping by hand. In addition, its 820 mm overall width and 1,425 mm turning radius make it easy to work in narrow warehouse aisles.
It is also the standard-speed version of the WS15 series. In other words, a 2.2 kW lift pump motor gives standard lifting and lowering, while the WS15-A adds a larger 2.5 kW motor with variable-speed lifting. So, choose the WS15-B when standard lifting speed is enough for your workflow.
Key Features & Benefits
Standard Lifting Speed
A 2.2 kW lift pump motor gives steady lifting and lowering, so it suits everyday stacking.
Light Grey & Black Finish
Also, the neutral colour suits sites that match equipment to a clean, corporate or retail-facing look.
Compact & Easy to Steer
Because the steering angle is above 180° and the tiller is low-mounted, operators steer with less effort in tight spaces.
Intelligent Tiller Handle
Battery level and fault codes show on the handle display. As a result, faults are found quickly and service time is shorter.
Built-In Safety
In addition, an electromagnetic brake and DC speed control keep travel smooth and controlled.
Easy Charging
The built-in charger includes external cable storage. The standard battery is 24V/71Ah maintenance-free lead-acid; however, a larger or lithium battery is also available.
Low Mast on Shorter Models
For example, models under 3.3 m lift suit containers and goods lifts.
WS15-A vs WS15-B — Which One Do You Need?
| WS15-A | WS15-B | |
|---|---|---|
| Lifting speed | Variable-speed (accelerated) lift & lower | Standard speed |
| Lift pump motor | 2.5 kW | 2.2 kW |
| Colour | Yellow & Black | Light Grey & Black |
| Load capacity | 1,500 kg | 1,500 kg |
| Lift heights | 2.0 – 4.0 m | 2.0 – 4.0 m |
| Best for | High pallet throughput, precise placement | Standard daily stacking |
Need faster, adjustable lifting? See the KOMADA Fully Powered Stacker WS15-A.
Choose Your Lift Height
| Model | Lift Height | Lowered Mast Height | Extended Mast Height | Stock |
|---|---|---|---|---|
| WS1520-B | 2,000 mm | 1,480 mm | 2,435 mm | Pre-order |
| WS1525-B | 2,500 mm | 1,730 mm | 2,935 mm | Pre-order |
| WS1530-B | 3,000 mm | 1,980 mm | 3,435 mm | In Stock |
| WS1533-B | 3,300 mm | 2,130 mm | 3,735 mm | Pre-order |
| WS1535-B | 3,500 mm | 2,230 mm | 3,935 mm | In Stock |
| WS1540-B | 4,000 mm | 2,550 mm | 4,370 mm | In Stock |
First, choose a lift height above your top racking beam. Then, check the lowered mast height against your door and goods-lift openings.
Applications
- Warehouses and distribution centres
- Factory stores
- Retail and wholesale stockrooms, including customer-facing back rooms
- E-commerce fulfilment
- Container loading (shorter mast models)
Because it uses polyurethane wheels and 30 mm ground clearance, it is designed for smooth, level indoor floors.
Why Choose the KOMADA WS15-B 1500kg Electric Stacker?
The WS15-B gives you compact, fully powered pallet stacking with standard lifting speed. Moreover, it shares the WS15-A chassis, capacity and lift heights, so you get the same narrow-aisle handling and tiller display. In addition, the 3.0, 3.5 and 4.0 m models are in stock for faster delivery.
Product Specifications
General
| Product Code | WS1520-B | WS1525-B | WS1530-B | WS1533-B | WS1535-B | WS1540-B |
|---|---|---|---|---|---|---|
| Stock availability | Pre-order | Pre-order | Yes | Pre-order | Yes | Yes |
| Drive | Battery | |||||
| Operator type | Pedestrian | |||||
| Colour | Light Grey & Black | |||||
| Load capacity (Q) | 1,500 kg | |||||
| Load centre distance (c) | 500 mm | |||||
| Load distance, centre of drive axle to fork (x) | 796 mm | |||||
| Wheelbase (y) | 1,210 mm | |||||
Weight
| Product Code | WS1520-B | WS1525-B | WS1530-B | WS1533-B | WS1535-B | WS1540-B |
|---|---|---|---|---|---|---|
| Service weight (without battery) | 509 | 529 | 556 | 565 | 575 | 612 |
| Service weight (with 71Ah battery) | 557 | —* | 604 | 613 | 623 | 660 |
| Service weight (with 89Ah battery) | 562 | —* | 609 | 618 | 628 | 665 |
| Axle loading, laden front / rear | 618 / 1,441 kg | |||||
| Axle loading, unladen front / rear | 419 / 140 kg | |||||
Tyres / Chassis
| Product Code | WS1520-B | WS1525-B | WS1530-B | WS1533-B | WS1535-B | WS1540-B |
|---|---|---|---|---|---|---|
| Wheels | Polyurethane | |||||
| Wheel size, front | Ø210 × 70 mm | |||||
| Wheel size, rear | Ø80 × 70 mm | |||||
| Additional wheels | Ø115 × 55 mm | |||||
| Wheels, number front / rear (x = driven) | 1x + 1 / 4 | |||||
| Tread front (b10) | 550 mm | |||||
| Tread rear (b11) | 390 mm (560 fork width) | |||||
Dimensions
| Product Code | WS1520-B | WS1525-B | WS1530-B | WS1533-B | WS1535-B | WS1540-B |
|---|---|---|---|---|---|---|
| Lowered mast height (h1, mm) | 1,480 | 1,730 | 1,980 | 2,130 | 2,230 | 2,550 |
| Lift height (h3, mm) | 2,000 | 2,500 | 3,000 | 3,300 | 3,500 | 4,000 |
| Extended mast height (h4, mm) | 2,435 | 2,935 | 3,435 | 3,735 | 3,935 | 4,370 |
| Tiller height in driving position, min / max (h14) | 910 / 1,270 mm | |||||
| Height, lowered (h13) | 85 ± 2 mm | |||||
| Overall length (l1) | 1,730 mm | |||||
| Length to face of forks (l2) | 580 mm | |||||
| Overall width (b1) | 820 mm | |||||
| Fork dimensions (s/e/l) | 70 × 160 × 1,150 mm | |||||
| Width over forks (b5) | 560 mm | |||||
| Ground clearance (m2) | 30 mm | |||||
| Aisle width, 1000 × 1200 pallet crossways | 2,268 mm | |||||
| Aisle width, 800 × 1200 pallet lengthways | 2,194 mm | |||||
| Turning radius (Wa) | 1,425 mm | |||||
Performance
| Product Code | WS1520-B | WS1525-B | WS1530-B | WS1533-B | WS1535-B | WS1540-B |
|---|---|---|---|---|---|---|
| Travel speed, with / without load | 4 / 4.5 km/h | |||||
| Lift speed, with / without load | 72 / 115 mm/s | |||||
| Lowering speed, with / without load | 133 / 116 mm/s | |||||
| Max. gradeability, with / without load | 5 / 10 % | |||||
| Service brake | Electromagnetic | |||||
Electric Engine
| Product Code | WS1520-B | WS1525-B | WS1530-B | WS1533-B | WS1535-B | WS1540-B |
|---|---|---|---|---|---|---|
| Drive motor rating S2 60 min | 0.75 kW | |||||
| Lift motor rating at S3 15% | 2.2 kW | |||||
| Battery voltage / nominal capacity (C5) | 12V / 71Ah × 2 | |||||
| Battery weight ± 5% | 23.2 kg × 2 (71Ah) | |||||
| Energy consumption (EN 16796) | 0.42 kWh | |||||
Additional Data
| Product Code | WS1520-B | WS1525-B | WS1530-B | WS1533-B | WS1535-B | WS1540-B |
|---|---|---|---|---|---|---|
| Type of drive control | DC speed control | |||||
| Sound level at driver's ear (EN 12053) | < 75 dB(A) | |||||
| Controller | KOMADA A6101 | |||||
* WS1525-B weight with battery: to be confirmed. Note: 1 kg = 2.2 lbs, 25.4 mm = 1 inch. Specifications may change without notice.
Key Features
Frequently Asked Questions
What is the difference between the WS15-A and WS15-B?
The main difference is lifting speed. The WS15-A has a larger 2.5 kW lift pump motor with variable-speed lifting and lowering, whereas the WS15-B has a 2.2 kW motor with standard speed. Otherwise, capacity, lift heights and chassis are the same. In addition, the WS15-A is Yellow & Black, while the WS15-B is Light Grey & Black.
Which should I choose, WS15-A or WS15-B?
Choose the WS15-A if you move many pallets per shift or need adjustable lifting speed. On the other hand, choose the WS15-B if standard lifting speed is enough for your workload.
What is a fully powered stacker?
It is a walk-behind electric truck that both drives and lifts pallets on battery power. In contrast, a semi-electric stacker only lifts electrically, so it must be pushed by hand.
How much can the WS15-B lift?
The rated capacity is 1,500 kg. However, capacity reduces at higher lift heights, so tell us your pallet weight and racking height and we will confirm the right model.
What aisle width does it need?
For 1000 × 1200 mm pallets crossways, it needs 2,268 mm. Similarly, 800 × 1200 mm pallets lengthways need 2,194 mm.
Which models are in stock?
WS1530-B (3.0 m), WS1535-B (3.5 m) and WS1540-B (4.0 m) are in stock. Other heights, however, are available on pre-order.
Not Sure Which Lift Height You Need?
Simply send us your racking height and pallet weight, and then our specialist will recommend the right model.
