1500 KG | Fully Powered Double Lifting Stacker

Komada Fully Powered Double Lifting Stacker having 1500kg load capacity and a liftable bottom fork to easily pass over sloped areas.

Home Electric Stacker 1500 KG | Fully Powered Double Lifting Stacker

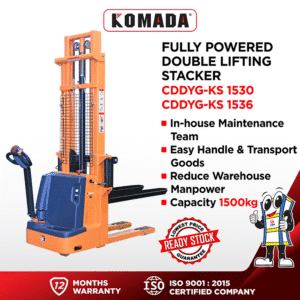

1500 KG | Fully Powered Double Lifting Stacker

Model Available

CDDYG-KS1530
CDDYG-KS1536

Fully Powered Double Lifting Stacker is an electric-powered solution for efficient cargo handling and stacking.

Additional Service: Enjoy a 6-month warranty on the battery and a 12-month warranty on the hydraulic pump.

Key Features:

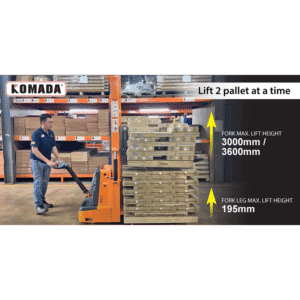

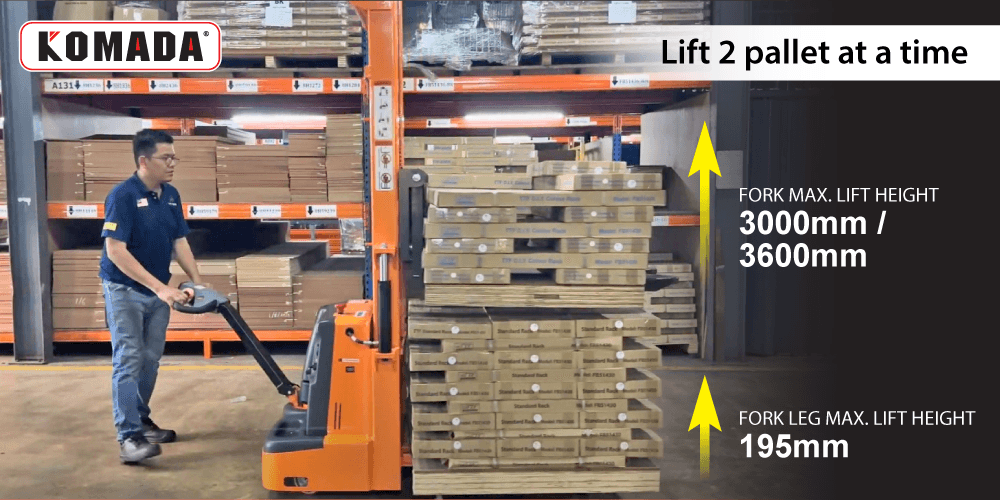

Capable of lifting and moving two separate pallets simultaneously, with a combined load capacity of up to 1,500 kg

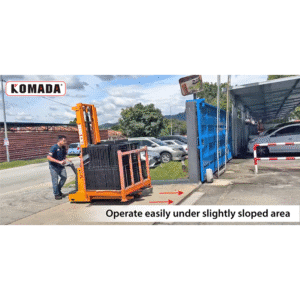

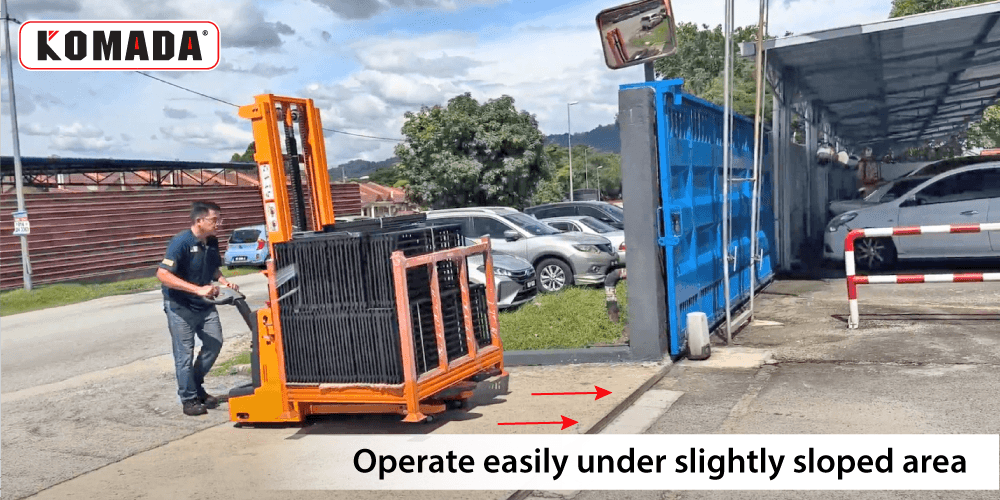

Designed with a lower fork lifting function, allowing smooth navigation over uneven and sloped surfaces

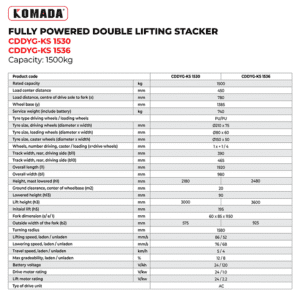

Product Specifications

Product Code		CDDYG-KS 1530	CDDYG-KS 1536
Rated capacity	kg	1500
Load center distance	mm	450
Load distance, centre of drive axle to fork (x)	mm	780
Wheel base (y)	mm	1385
Service weight (include battery)	kg	740
Tyre type driving wheels / loading wheels		PU
Tyre size, driving wheels (diameter x width)	mm	Ø210 x 75
Tyre size, loading wheels (diameter x width)	mm	Ø80 x 60
Tyre size, caster wheels (diameter x width)	mm	Ø150 x 50
Wheels, number driving, caster / loading (x=drive wheels)	mm	1x + 1/4
Track width, rear, driving side (b11)	mm	390
Track width, rear, driving side (b10)	mm	465
Overall length (l1)	mm	1920
Overall width (b1)	mm	980
Height, mast lowered (h1)	mm	2180	2480
Ground clearance, center of wheelbase (m2)	mm	20
Lowered height (h13)	mm	90
Lift height (h3)	mm	3000	3600
Initial lift (h5)	mm	195
Fork dimension (s/e/l)	mm	60 x 85 x 1150
Outside width of the fork (b2)	mm	575	925
Turning radius	mm	1580
Lifting speed, laden / unladen	mm/s	86 / 52
Lowering speed, laden / unladen	mm/s	76 / 68
Travel speed, laden / unladen	km/h	5 / 4
Max gradeability, laden / unladen	%	12 / 8
Battery voltage	V/Ah	24 / 120
Drive motor rating	V/kw	24 / 1.0
Lift motor rating	V/kw	24 / 2.2
Tye of drive unit		AC
