KOMADA ELECTRIC FORKLIFT
KOMADA Electric Forklift is a lightweight and compact model with a rated capacity of 990 kg and a 3000 mm lift height
KOMADA ELECTRIC FORKLIFT – Advanced Warehouse Lifting Solution
Product Overview

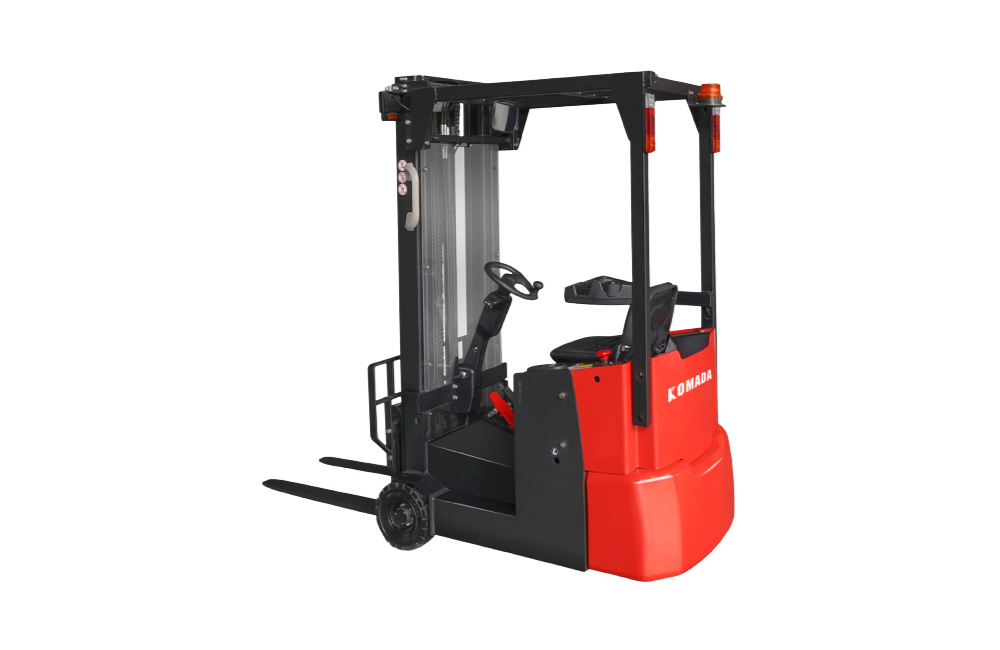

The Komada Electric Forklift (EFS101-1027) is a high-performance lifting solution for busy warehouses. It is a lightweight and compact model with a rated capacity of 990 kg and a 3000 mm lift height, helping you move goods easily in tight indoor spaces. Its design makes it perfect for facilities with floor weight limits or mezzanine levels.
Engineered for stability and precision, this battery-powered forklift offers a clean, quiet, and powerful alternative to traditional engine-powered models. If you need a powerful tool that is easy to operate in narrow aisles, the Komada EFS101-1027 is the right choice for your business.
Key Features & Benefits
• High-Efficiency Lifting: Featuring a 3-meter lift height (h3) and a robust mast system that extends to a maximum of 3908 mm (h4), allowing for efficient vertical storage utilization.
• AC Drive System: Equipped with a high-performance AC motor that provides consistent torque and smooth acceleration, ensuring efficient goods transport even with maximum loads.
• Precision Hydraulic Control: Features an advanced hydraulic pump system for stable and accurate lifting, allowing operators to handle delicate stock with confidence at various heights.
• Zero-Emission Performance: The fully electric drivetrain eliminates exhaust fumes and reduces noise levels, creating a safer and more comfortable work environment for indoor facilities.
• Compact Maneuverability: With an incredibly small turning radius of only 1278 mm, it can navigate sharp corners with ease. This model excels in narrow aisles, requiring a minimum aisle width of: 2824 mm for standard 1000 x 1200 pallets; 2938 mm for standard 800 x 1200 pallets.
• Energy Efficient Power: High-capacity battery technology supports extended shifts with rapid charging capabilities, effectively reducing downtime and lowering total operational costs.
Compact size and light weight
The EFS101 features a compact chassis, which is significantly smaller than others with the same tonnage in the industry. It is optimized for flexibility in narrow spaces thanks to its short 1278mm turning radius. In addition, operators can take advantage of its light weight 1650kg to cover cargo lift and mezzanine usage.
User-centric design
The EFS101 ensures high ground clearance compared to regular forklifts and can ride smoothly on uneven surfaces. Operators can drive comfortably due to the ergonomic foot pedal design. It also comes with an electronic power steering system, providing precise operation and enhancing maneuverability.
Integrated charger
The EFS101 is equipped with a 24V-25A integrated charger, which offers operators convenience and flexibility in daily usage, allowing for easy charging at any standard power outlet.
Market-proven and mature components
The EFS101 uses market-proven spare parts, which promise safety and reliability. It comes with a 24V/220AH long-lasting AGM battery and the Curtis Controller, which helps increase efficiency and reduce operation costs.
Product Specifications
| Product Code | EFS101-1027 | |
|---|---|---|
| Distinguishing Mark | ||
| Drive Unit | - | Electric |
| Operator Type | - | Stand-on / Pedestrian |
| Rated Capacity (Q) | kg | 990 |
| Load Centre Distance (c) | mm | 400 |
| Load distance, centre of drive axle to fork (x) | mm | 204 |
| Wheelbase (y) | mm | 1015 |
| Weight | ||
| Service Weight | kg | 1520 |
| Axle loading, laden front / rear | kg | 2150 / 360 |
| Axle loading, unladen front / rear | kg | 920 / 900 |
| Tyres / Chassis | ||
| Tyre Type | - | Nylon / PU |
| Tyre size, front | mm | Ø230 x 75 |
| Tyre size, rear | mm | Ø115 x 55 |
| Wheels, number front/rear (x=driven wheels) | - | 1x+2/2 |
| Dimensions | ||
| Lift height (h3) | mm | 3000 |
| Height, mast lowered (h1) | mm | 2061 |
| Height, mast extended (h4) | mm | 3098 |
| Overall length (l1) | mm | 2402 |
| Overall width (b1/ b2) | mm | 894 |
| Fork dimension s/ e/ l | mm | 35 x 100 x 920 |
| Turning radius (Wa) | mm | 1278 |
| Aisle width for pallets 1000 x 1200 crossways (Ast) | mm | 2824 |
| Performance Data | ||
| Travel speed, laden/ unladen | km/h | 6 / 8 |
| Lifting speed, laden/ unladen | m/s | 0.12 / 0.22 |
| Lowering speed, laden/ unladen | m/s | 0.15 / 0.16 |
| Max. gradeability, laden/ unladen | % | 5 / 10 |
