RZ Series Four Way Hand Pallet Jack 2000KG
RZ Series Four Way Hand Pallet Truck is the specialized solution for facilities where space is at a premium. Its defining Four-Way Movement functionality allows operators to handle pallets in all four directions, drastically improving maneuverability and efficiency in tight aisles and complex layouts. It features a robust Load Capacity suitable for most standard pallet sizes. The truck’s Versatile Fork Height system supports both normal transport and a distinct Transverse Transportation Mode for seamless lateral movement, making it an excellent solution for enhanced mobility and flexibility.

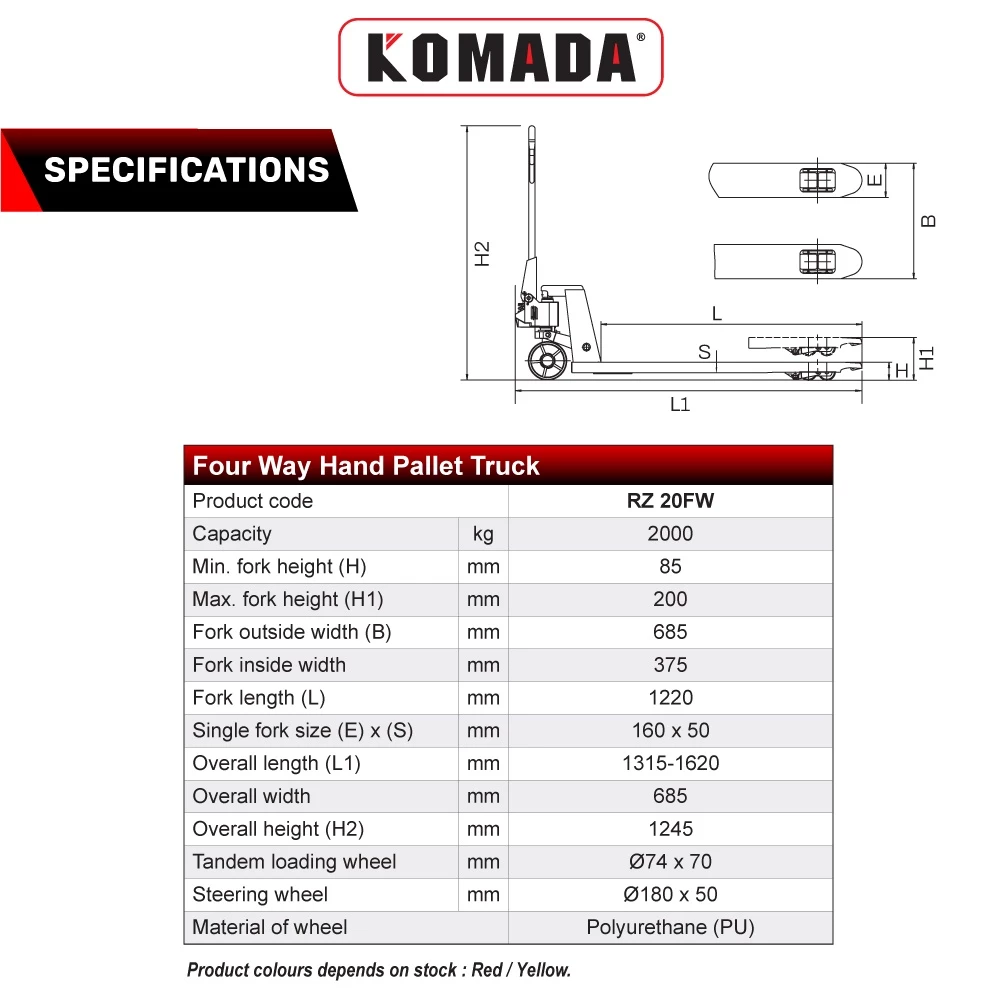

Products Specification
| Product Code | RZ 20FW | ||
|---|---|---|---|
|
Load Capacity |
KG |
2000 |
|
|
Min. fork height (H)
|
mm |
85
|
|
|
Max. fork height (H1) |
mm |
200 |
|
|
Fork outside width (B) |
mm |
685 |
|
|
Fork inside width
|
mm |
375 |
|
|
Fork length (L)
|
mm
|
1220
|
|
|
Single fork size (E) x (S) |
mm |
160 x 50 |
|
|
Overall length (L1) |
mm |
1315-1620 |
|
|
Overall width |
mm |
685 |
|
|
Overall height (H2) |
1245 |
mm |
|
|
Tandem loading wheel |
mm |
Ø74 x 70 |
|
|
Steering wheel |
mm |
Ø180 x 50 |
|
|
Material of wheel |
Polyurethane (PU) |
||
Key Features
Four-Way Movement
Allows for effortless handling of pallets in all four directions, making it an essential tool for tight aisles and congested staging areas.

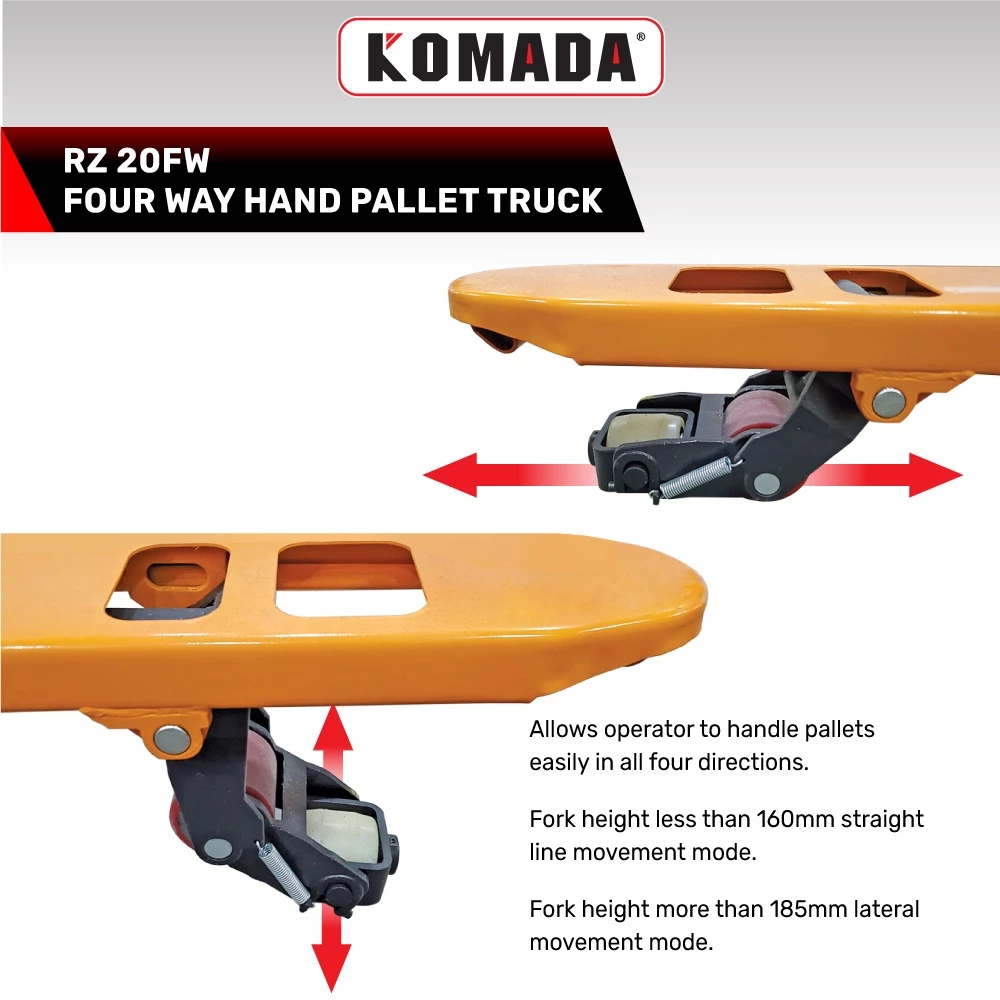

Versatile Fork Height
Smoothly adjusts between 85 mm (transport) and 200 mm (transverse mode), providing the necessary lift for lateral movement and enhanced maneuverability.
Heavy Load Capacity
Supports a Load Capacity of up to 2000KG, providing reliable, heavy-duty performance for standard industrial loads.
Smooth Operation
Features durable Polyurethane (PU) wheels (or Nylon depending on stock) for ease of maneuverability and a smoother, quieter ride.

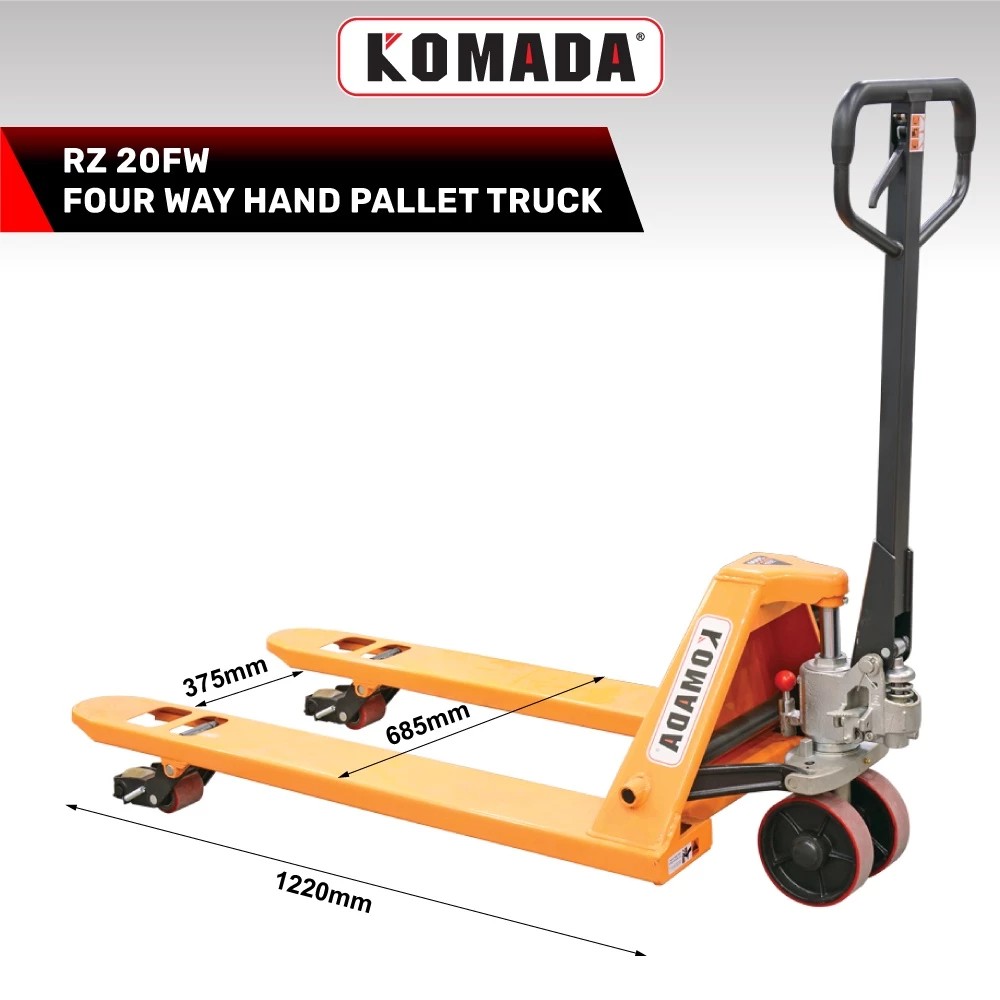

Optimal Dimensions
Standard 1220mm fork length with 685mm outside width ensures compatibility with most standard pallets and racking systems.
Efficiency Solution
The multi-directional functionality significantly enhances mobility and efficiency, reducing the need for repositioning in tight spots.
Why Choose RZ Series Four Way Pallet Truck?
RZ Series 2000KG Four-Way Pallet Jack is the superior choice because its four-way movement offers unmatched flexibility in narrow racking walkways. This revolutionary multi-directional capability dramatically cuts down on operation time by eliminating complex turning maneuvers required by standard jacks. By enhancing mobility in confined spaces, the RZ 20FW maximizes your warehouse utilization and productivity, delivering a strong ROI through optimized workflow and reduced risk of product damage.
