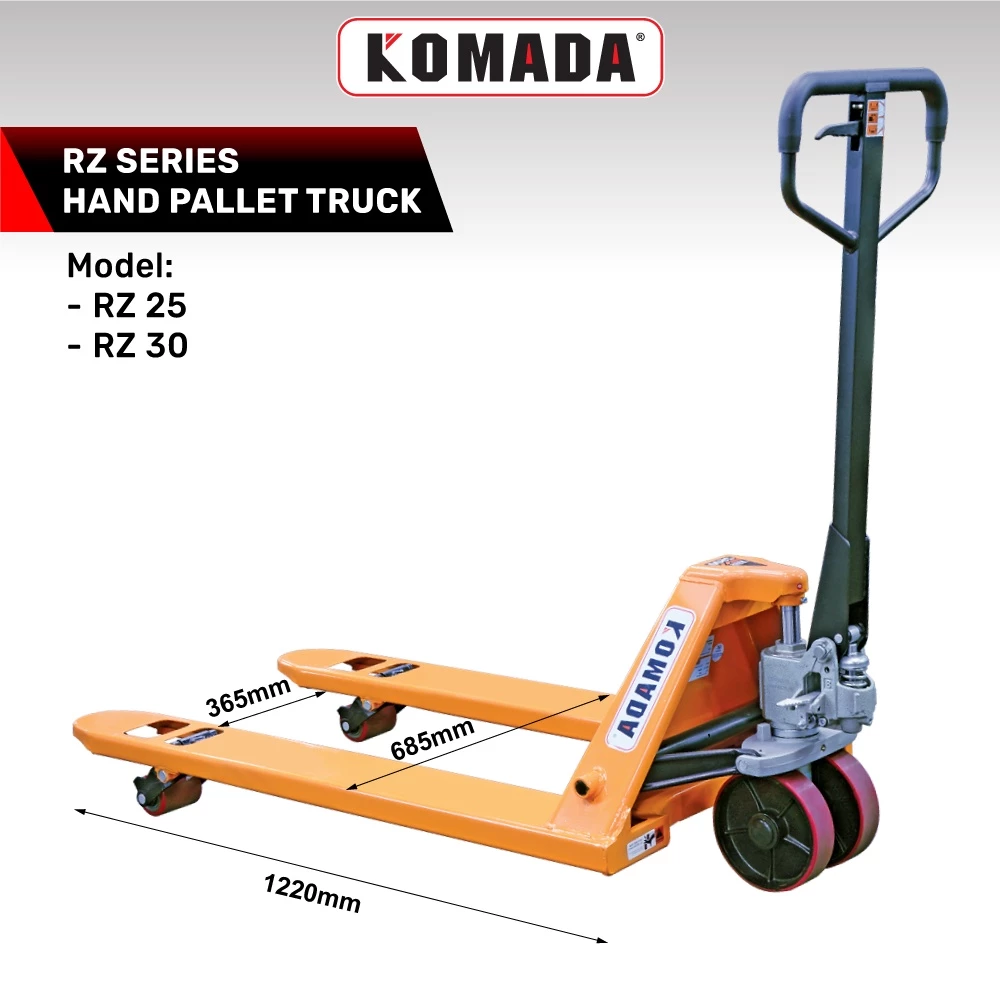

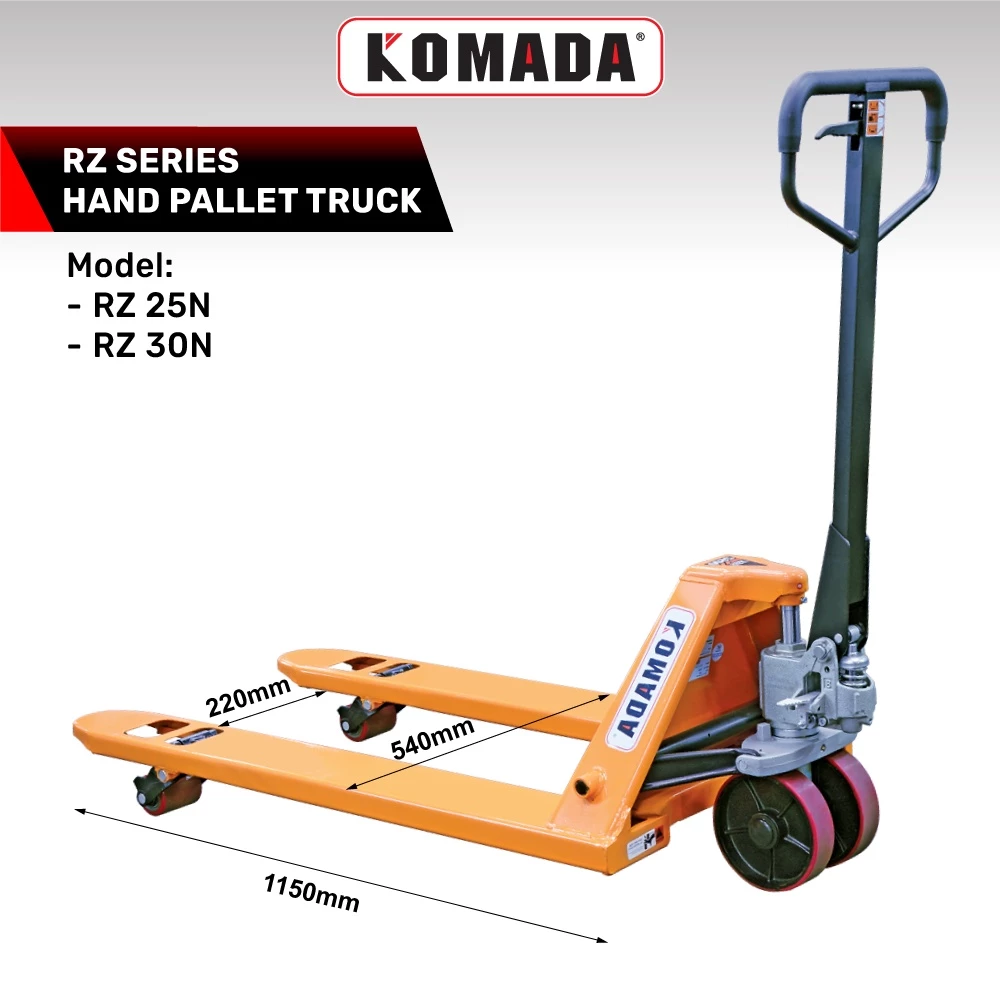

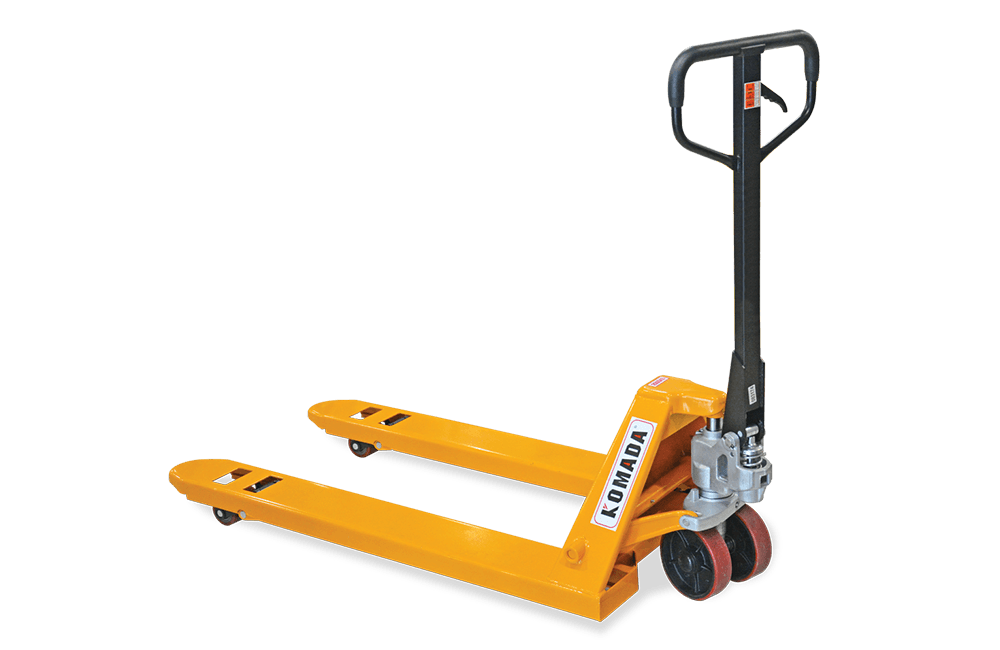

RZ Series Standard Hand Pallet Jack 2500/3000KG
RZ Series Standard Hand Pallet Truck is the essential workhorse designed for versatile and heavy-duty material transport. Available in robust and Load Capacities, this jack handles substantial loads with ease and features a high lifting height up to mm. Its Durable Design is highlighted by a robust Casting Steel Pump equipped with a safety overload and bypass system, a reinforced fork frame, and solid steel lifting rods, ensuring exceptional longevity and safety. With Flexible Dimensions (various fork widths and lengths) and customizable wheel options, the RZ Series is built to be the highly reliable foundation of your warehouse logistics.

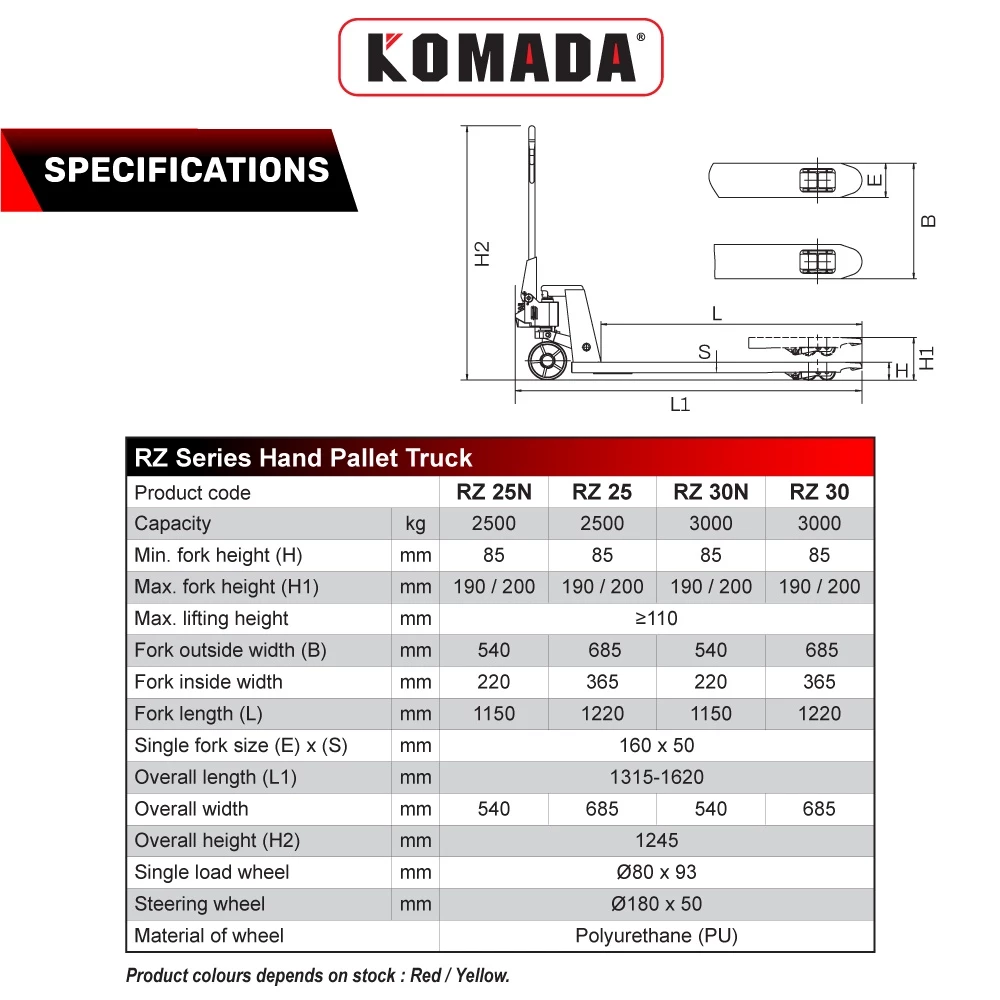

Products Specification
| Product Code | RZ 25N | RZ 25 | RZ 30N | RZ 30 | |
|---|---|---|---|---|---|
|
Load Capacity |
KG |
2500 |
3000 |
||
|
Min. fork height (H) |
mm |
85
|
|||
|
Max. fork height (H1) |
mm
|
190/200 |
|||
|
Max. lifting height |
mm |
≥110
|
|||
|
Fork outside width (B)
|
mm |
540 |
685 |
540
|
685
|
|
Fork inside width
|
mm
|
220
|
365
|
220
|
365
|
|
Fork length (L)
|
mm
|
1150 |
1220
|
1150 |
1220
|
|
Single Fork Size (E) x (S) |
mm |
160 x 50 |
|||
|
Overall length (L1) |
mm |
1315 – 1620 |
|||
|
Overall width |
mm |
540 |
685 |
540 |
685 |
|
Overall height (H2) |
mm |
1245 |
|||
|
Single load wheel |
mm |
Ø80 x 93 |
|||
|
Steering wheel |
mm |
Ø180 x 50 |
|||
|
Material of wheel |
Polyurethane (PU) |
||||
Key Features
High Load Capacity
Available in 2500KG and 3000KG versions, providing robust, reliable support for the majority of heavy-duty daily material handling tasks.
Customizable Wheels
Offers extensive options including nylon, polyurethane, rubber wheels, and choice of single or tandem fork load wheels to match different floor types and reduce rolling resistance.
Durable Design (Structural Integrity)

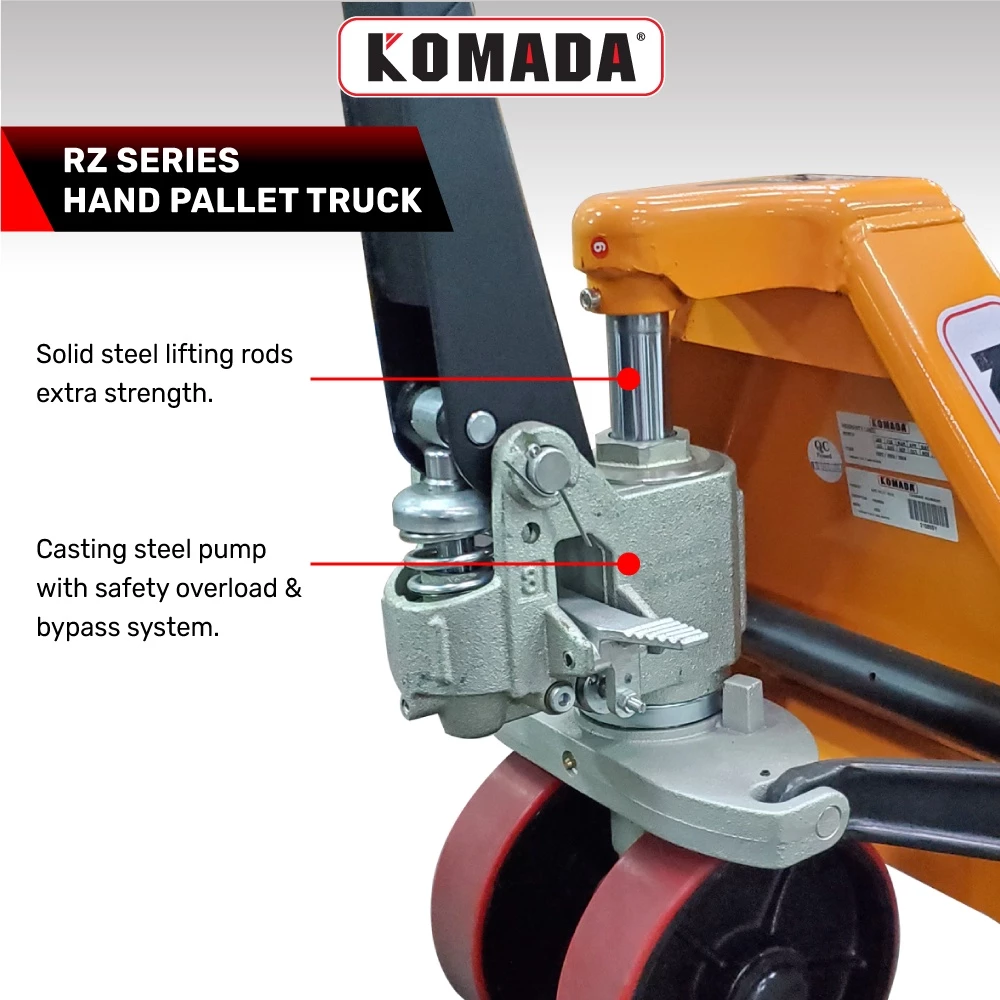

Equipped with a high-quality Casting Steel Pump (with safety overload/bypass system) and a Top Balanceable Reinforced Fork Frame for superior longevity and structural strength.

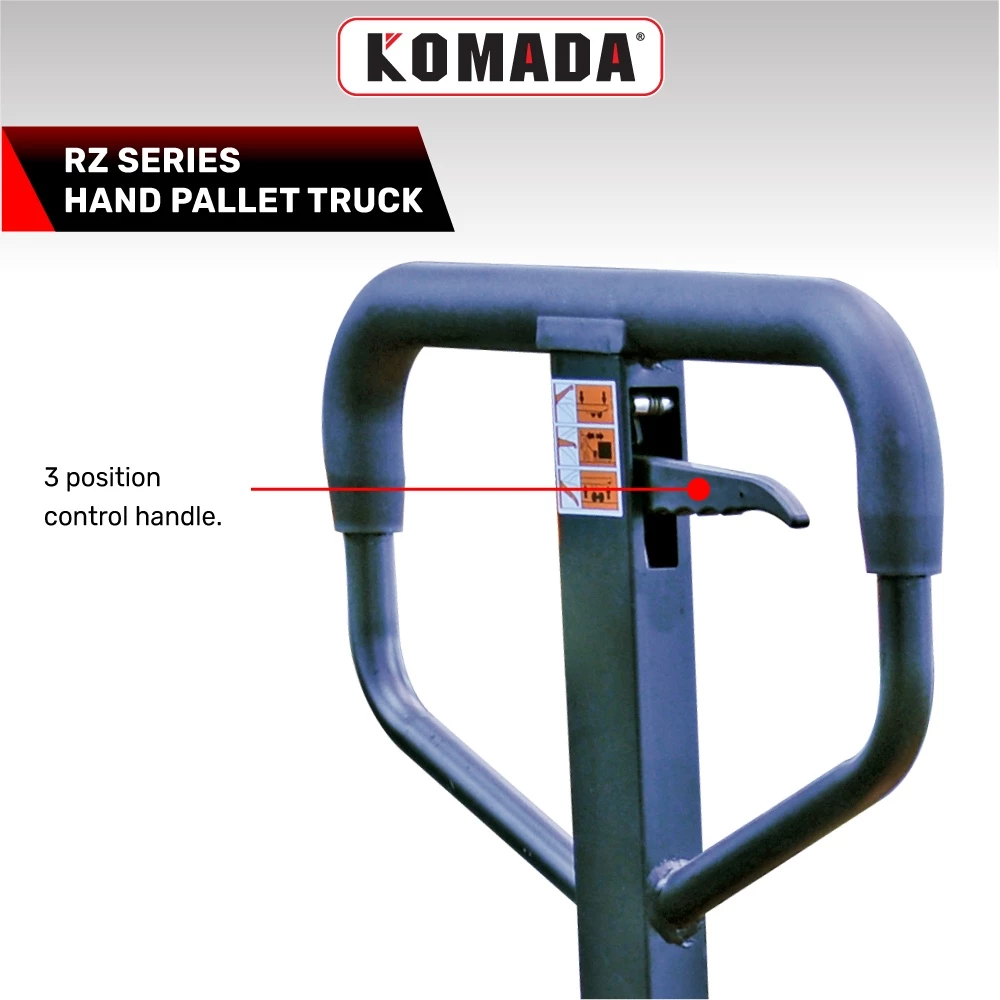

Smooth Operation
Features a 3-position control handle for easy maneuvering and control (Raise, Neutral, Lower), enhancing operational safety and reducing operator effort.
High Lifting Height
Capable of lifting pallets to a maximum height of 190/200 mm, providing ample clearance for transport over uneven surfaces or obstacles.

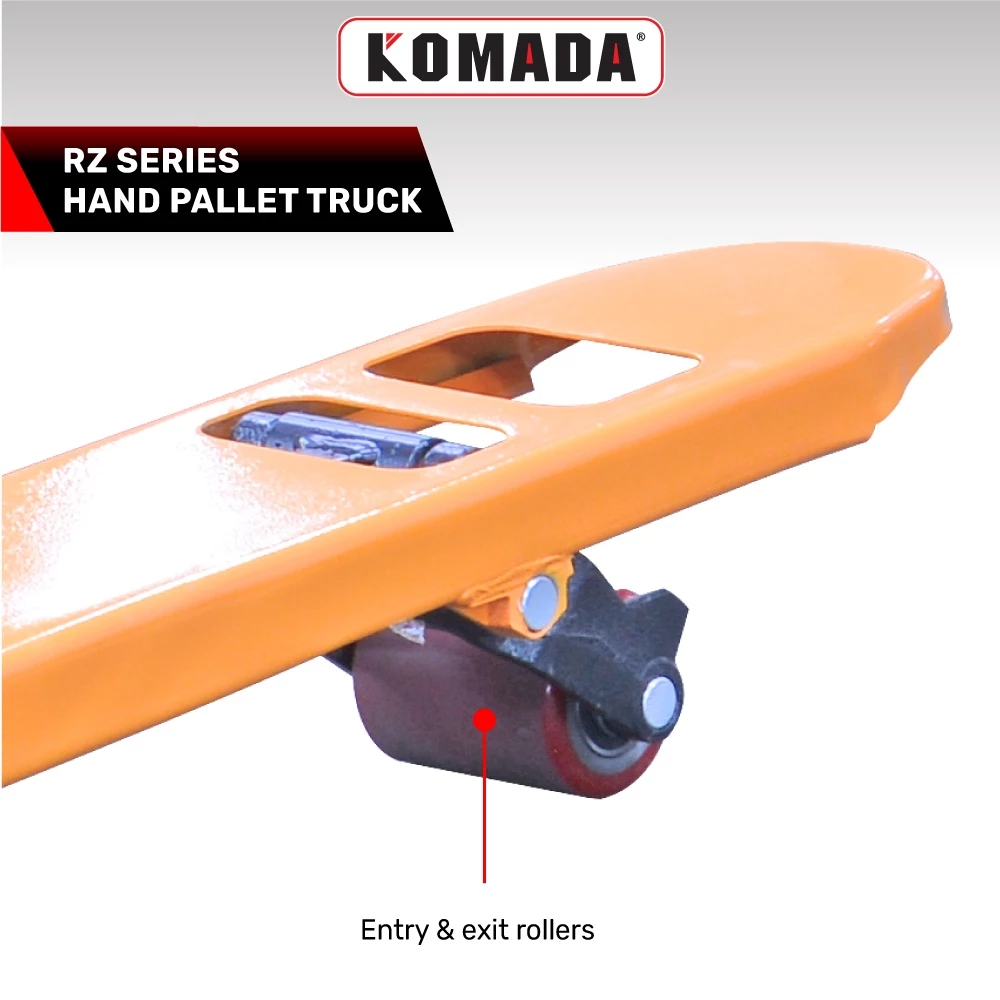

Entry & Exit Rollers
Integrated rollers provide easy movement when entering and exiting pallets, minimizing wear on the load wheels and increasing efficiency.
Why Choose the RZ Series Standard Pallet Jack?
RZ Series Standard Pallet Jack is the definitive choice for businesses seeking unmatched reliability and structural quality. Its core advantage lies in its premium Durable Design, specifically the Casting Steel Pump and reinforced frame, which ensures outstanding product longevity and minimal maintenance over years of intense use. This focus on enduring quality, combined with its flexible heavy load capacity options and superior economic pricing, guarantees operational safety, reduced downtime, and an excellent return on investment (ROI) for your core logistics needs.
