Manual Platform Stacker 400KG
KOMADA PS0415 Manual Platform Stacker is specifically designed for highly efficient and user-friendly performance, making it the ideal solution for light-duty material handling tasks. With a kg capacity and a maximum lift height of mm, this stacker easily facilitates the movement and stacking of materials in small warehouses, workshops, or retail backrooms. The simple foot-pump lifting mechanism minimizes operator effort, while durable PU wheels and the Walkie operating type ensure smooth maneuverability and reliability.

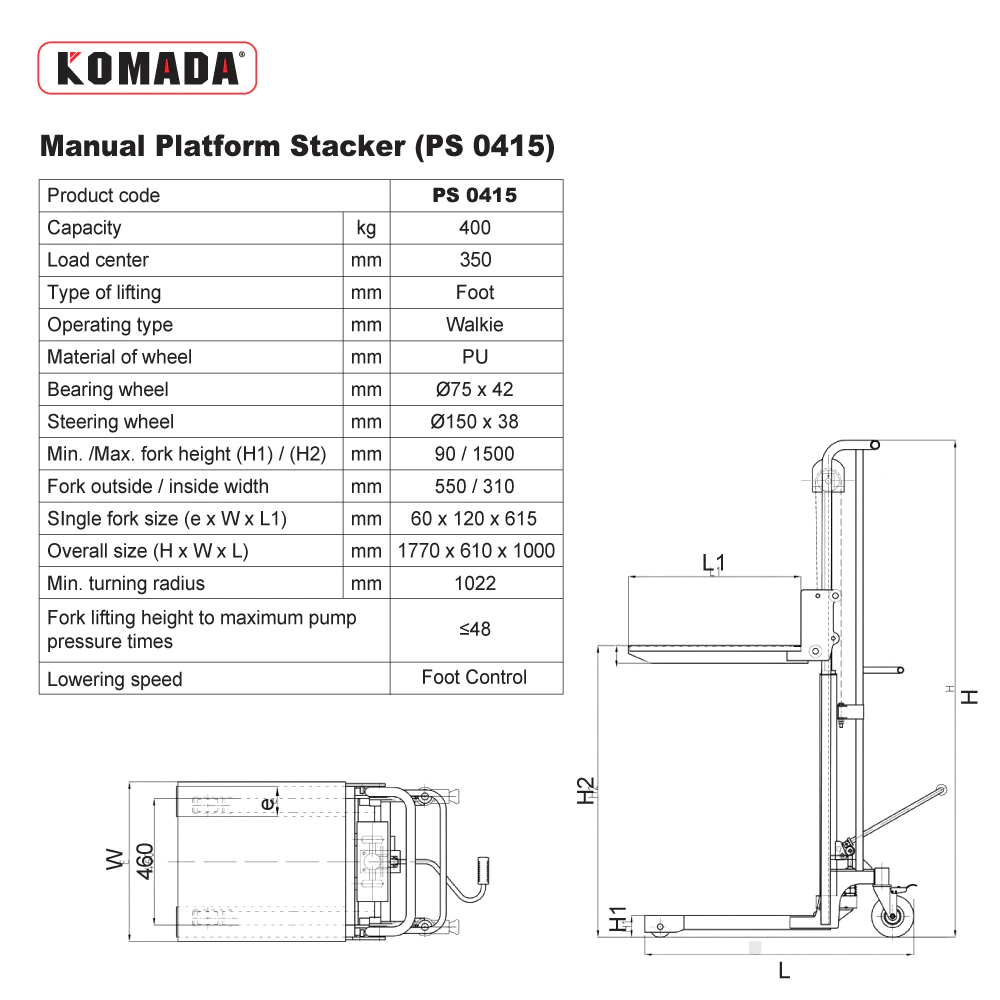

Product Specifications
| Product Code | PS 0415 | |
|---|---|---|
|
Capacity |
kg |
400 |
|
Load center |
mm |
350 |
|
Type of lifting |
Foot |
|
|
Operating type |
Walkie |
|
|
Material of wheel |
PU |
|
|
Bearing wheel |
mm |
Ø75 × 42 |
|
Steering wheel |
mm |
Ø150 × 38 |
|

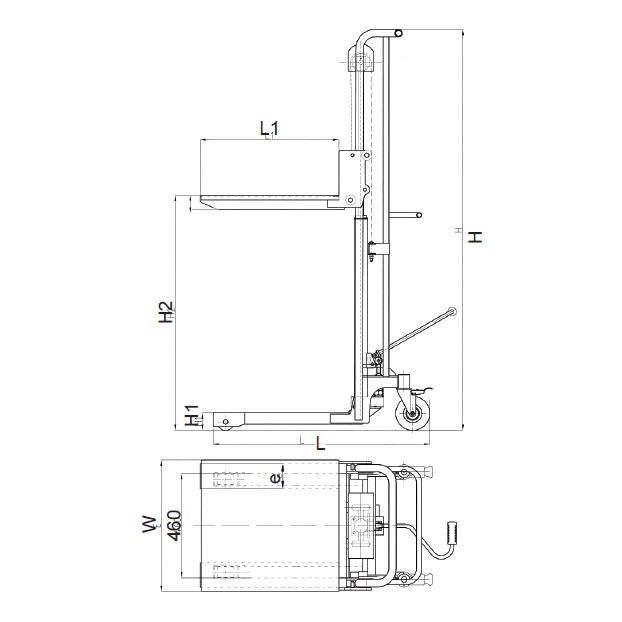

Min. / Max. fork height (H1) / (H2) |
mm |
90 / 1500
|
|
Fork outside / inside width |
mm |
550 / 310 |
|
Single fork size (e × W × L) |
mm |
60 × 120 × 815 |
|
Overall size (H × W × L) |
mm |
1770 × 610 × 1000 |
|
Min. turning radius |
mm |
1022 |
|
Fork lifting height to maximum pump pressure times |
≤48 |
|
|
Lowering speed |
Foot Control
|
|
Key Features
100% Efficiency
Top Reason to Invest—achieve quicker job completion and maximum throughput compared to slow, manual pallet trucks.

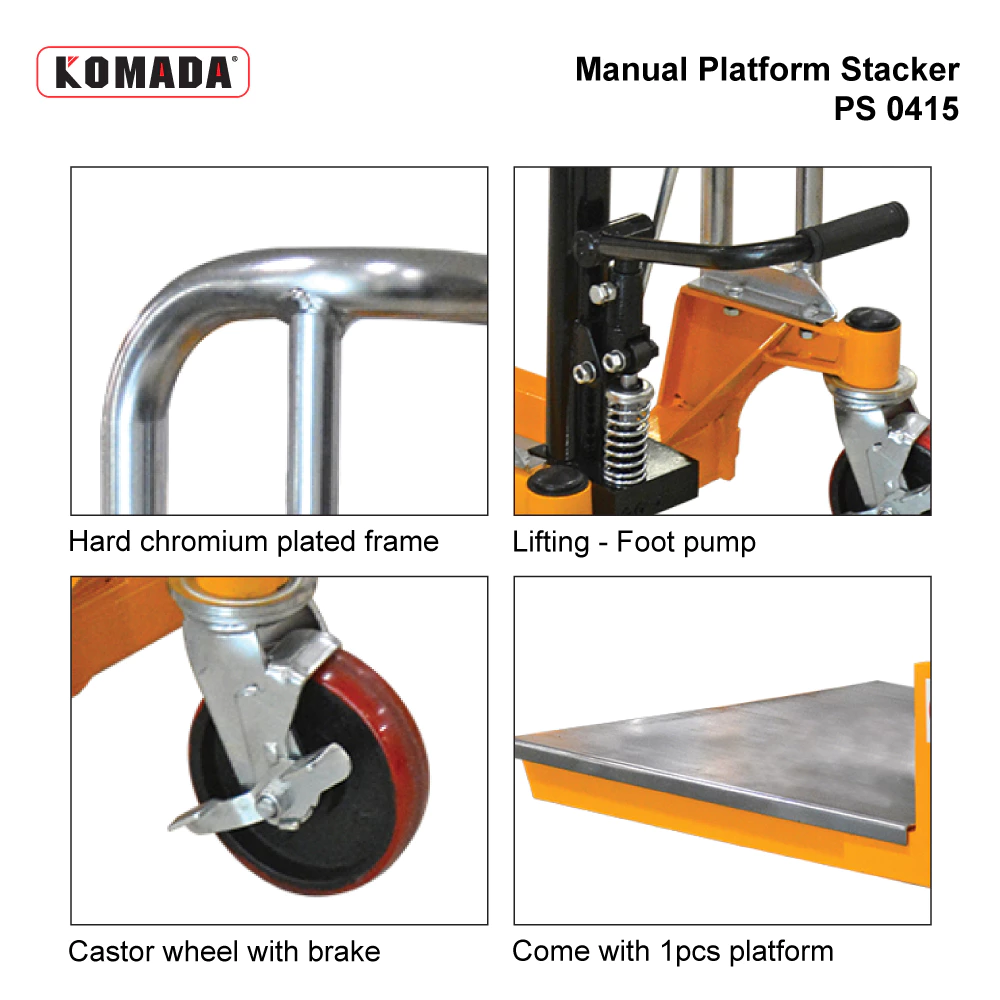

Foot-Pump Lifting Mechanism
Designed for minimal effort and simple operation, the foot pump quickly lifts loads with high efficiency (maximum pump pressure achieved in ≤48 times).
Smooth Operation
Features a Foot Control for lowering speed and durable PU wheels (Ø150×38 mm steering wheels) for excellent maneuverability and smooth rolling across various surfaces.
Optimal Dimensions

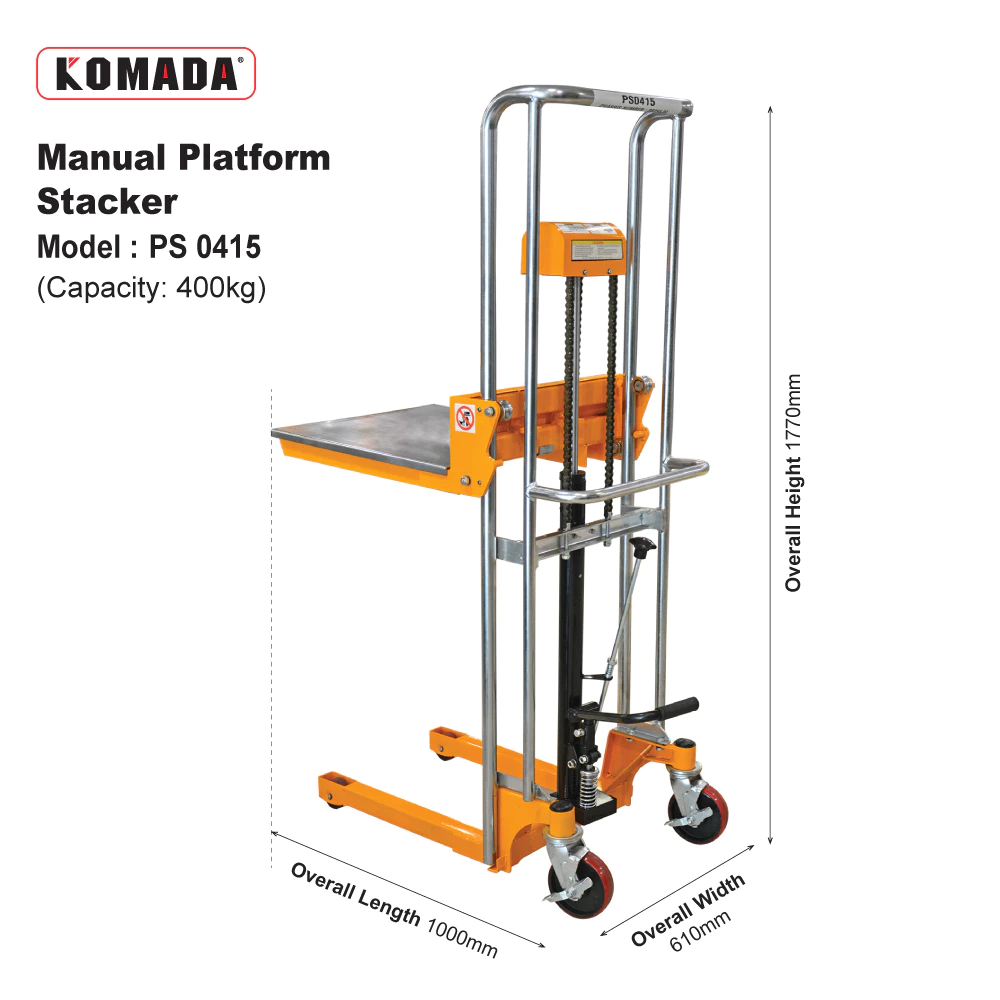

Compact overall size (1770×610×1000 mm) and a tight Min. Turning Radius (1022 mm) make it perfect for operating in confined spaces.
Durable Construction
Built as a reliable Walkie stacker, its construction guarantees longevity and consistent performance in demanding environments.
Why Choose the KOMADA PS0415 Stacker?
KOMADA PS0415 Manual Platform Stacker is the smartest choice for light lifting because it combines capacity with an extremely user-friendly foot-pump lifting mechanism. This design ensures the movement and stacking of materials is done with minimal effort, directly translating to reduced operator fatigue and higher efficiency. Backed by Over 20 Years of Industry Experience, a -Month Warranty on selected items, and high-quality imported components, the PS0415 guarantees reliability and a rapid return on investment (ROI) for your basic stacking needs.
Manual Stacker
