N Series 2-Way Pallet Shuttle

KOMADA N Series 2-Way Pallet Shuttle improve warehouse storage utilization up to 80%. Eliminate forklift aisles. Ideal for high-density, bulk storage.

Home Pallet Shuttle N series 2-way pallet shuttle

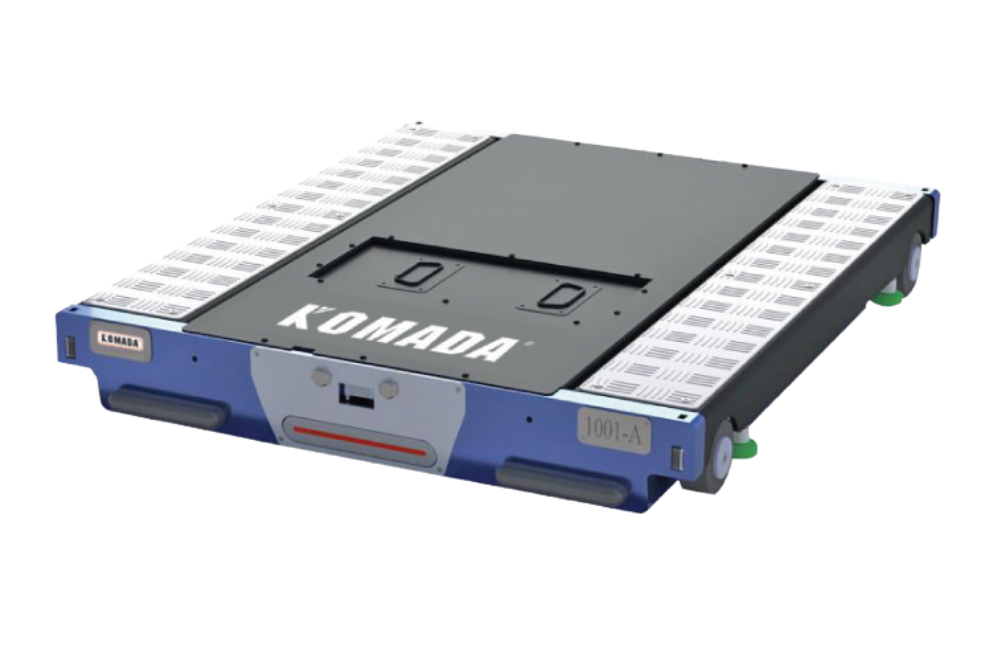

1500KG N Series 2-Way Pallet Shuttle

KOMADA N Series 2-Way Pallet Shuttle System provides a semi-automated approach to deep storage, moving pallets precisely and quickly through specialized lanes. Operators control the shuttle remotely, allowing it to autonomously handle transport within the racks. This efficient system boosts space usage and cuts down on travel time, greatly minimizing accidents and potential rack damage. It is the perfect high-density solution for bulk storage, offering a modern, space-saving alternative to traditional drive-in racking.

Strong Flexibility

Ultra-Thin Body, Rapid Speed: Designed for maximum agility and fast operation within storage lanes.
Flexible Product Access: Enables dedicated and efficient access channels for various types of stored products.
Diverse Shelf Configurations: Compatible with multiple racking layouts to offer diverse operational methods.
Adaptable Operations: Easily accommodates the specific needs of different users and varying levels of work intensity.

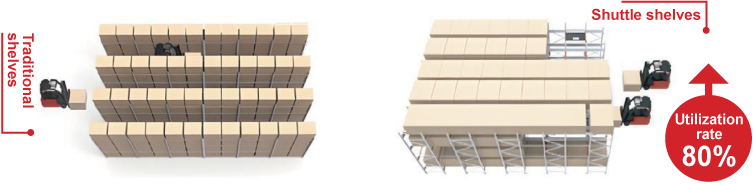

Efficient Space Utilization

High-Density Storage: Achieve a space utilization rate of over 80% by maximizing storage volume.
Optimized Forklift Operations: Racking is configured densely, limiting forklift travel to the warehouse entrance/exit only.
Efficient Handling: Shuttle cars autonomously transport goods deep into the designated storage positions.
Reduced Aisle Space: Eliminates unnecessary aisles, dedicating maximum floor space to product storage.

Reliable Performance

Extended Operation: Standardly equipped with a 48V30Ah battery capacity.
Continuous Power: Capable of continuous operation for 6 to 8 hours on a single charge.

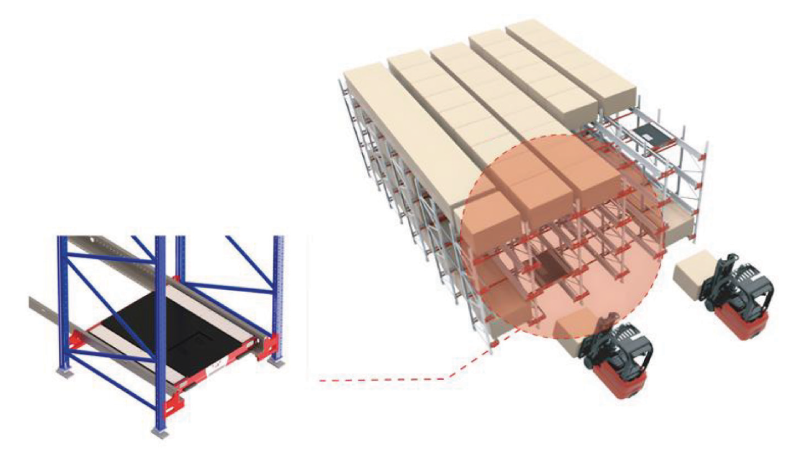

Safe and Reliable

Enhanced Safety: Eliminates the risk of accidents by removing the need for forklifts and personnel to enter the rack aisles.
Precision Control: Uses Laser + Photoelectric dual positioning for precise and flexible motion control.
Superior Stability: Provides a higher safety factor and more stable structure compared to traditional drive-in rack systems.

Product Specification

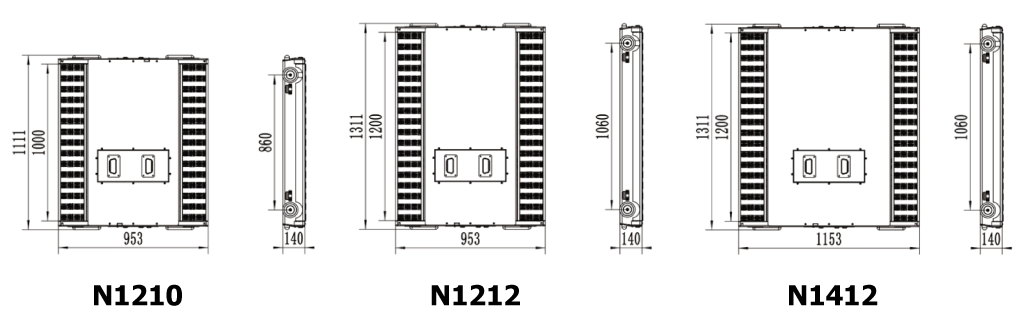

Product Code		N1210	N1212	N1412
Basic Parameters
Dimension	mm	953W x 1111L x 140H	953W x 1311L x 140H	953W x 1311L x 140H
Weight	kg	250	280	300
Rated Load	kg	1500
Lifting Height	w	859	1059	1059
Drive Wheel Size	mm	50
Laser Range Distance	m	0.03 ~ 10
Applicable Tray Size	mm	1200 x 1000	1200 x 1200	1400 x 1200
Applicable Tray Types		Chuan Shaped: Tian Shape
Ambient Temperature		-10˚C ~ 50˚C
Ambient Humidity		≤85% No Condensation
Track Adaptation		All Sizes of Tracks
Storage Spacing		5-25cm Adjustable
Speed Control Mode		Flexible Motion Control
Operating Noise		≤70dB
Motion Performance
Full Load Moving Speed	m/s	0.9
No Load Moving Speed	m/s	1.2
Motion Positioning Method		Laser
Tray Positioning Method		Laser and Optoelectronic
Lifting Positioning Method		Proximity Switch
Repeatability		5
Battery Type		Lithium Iron Phosphate
Battery Performance
Rated Voltage	V	48
Battery Capacity	AH	30AH
Rechargeable Times		2000
Full Power Working Time		8H
Charging Time		3-4h
Charging Method		Independent Battery Charge
Safety Protection
Automatic Avoid-Obstacle		●	●	●
Anti-collision stripes		●	●	●
Remote Emergency Stop		●	●	●
Tray in Place Detection		●	●	●
Fault Warning Light		●	●	●
Others
Appearance Coating		Dark Blue, other colours are optional
Options		Space battery, space charging cable, low-temperature version accessories
After Sales Warranty		Key components such as motors, reducers, controllers, etc. are guaranteed for 3 years, and the entireshuttle is guaranteed for 2 years.
