1500KG | F4 Powered Pallet Jack with Stand Pedal

Komada F4 Powered Pallet Jack with Stand Pedal 1.5ton is ideal for handling item in high volume and long walkway.

Home Powered Pallet Jack 1500KG | F4 Powered Pallet Jack With Stand Pedal

F4 Powered Pallet Jack with Stand Pedal (1500KG)

F4 Powered Pallet Jack with Stand Pedal is the ideal choice for modernizing your material handling operations, offering a significant upgrade in ergonomics and efficiency. This pedestrian truck supports a High Load Capacity of up to $1500 K G$ and ensures $100%$ Efficiency with quicker job completion than manual alternatives. Designed with staff wellness in mind, its electric drive and controls reduce strain on staff, lowering the risk of back pain. The truck comes standard with a $24$ V/ $20$ Ah portable battery setup and offers an optional Dual Battery Configuration (total $40$ Ah capacity) to sustain operations for up to $5$ – $6$ hours daily, providing reliable power for demanding shifts.

Product Specifications

Product Code		F4
Drive type		Electric
Operator type		Pedestrian
Load capacity (Q)	kg	1500
Load center distance (c)	mm	600
Load distance, centre of drive axle to fork (x)	mm	950
Wheelbase (y)	mm	1180
Service Weight
Service weight (include battery)	kg	120
Axle loading, laden front/rear	kg	480/1140
Axle loading, unladen front/rear	kg	90/30
Types Chassis
Tyre type		Polyurethane
Tyre size, front	mm	Ø210*70
Tyre size, rear	mm	80*60
Additional wheel (Castor Wheel)	mm	74*30
Wheels, number front/ rear (x=drive wheels)	mm	1x + 1/4
Tread width, front (b10)	mm	–
Tread widt, rear (b11)	mm	410(535)
Dimensions
Fork Dimension	mm	1150*685
Fork lowered height	mm	80
Drive cover off the ground	mm	55
Lift height (h3)	mm	105
Height of tiller handle in drive position min./max.	mm	750 / 1190
Lowered height (h13)	mm	88
Overall length (L1)	mm	1150
Length to face of forks (L2)	mm	400
Overall width (b1 / b2)	mm	590(695)
Fork dimensions (s × e × l)	mm	55 * 150 * 1150
Distance between forks arm (b5)	mm	560 (685)
Ground clearance, center of wheelbase (m2)	mm	25
Aisle width for pallets 1000 × 1200 crossways (Ast)	mm	2160
Aisle width for pallets 800 × 1200 lengthways (Ast)	mm	2025
Turning radius (Wa)	mm	1360
Performance Data
Travel speed, laden/unladen	km/h	4/4.5
Lifting speed, laden/unladen	m/s	0.017/0.020
Lowering speed, laden/unladen	m/s	0.058/0.046
Max. gradeability, laden/unladen	%	6/16
Service brake type		electromagnetic
Electric Engine
Drive motor rating S2 60 min	kW	0.75
Lift motor rating at S3 15%	kW	0.5
Battery voltage / nominal capacity	V/Ah	24/20
Battery weight	kg	5
Turnover output according to VDI 2198	t/h	60
Turnover efficiency according to VDI 2198	t/kWh	333.33

Additional information

Type of Drive Control: DC
Steering Design: Mechanical
Sound Pressure Level at the Driver’s Ear: 74 dB (A)
Load Wheel Material: PU (Polyurethane)
Drive Wheel Material: PU (Polyurethane)
Battery Capacity: 20Ahx1
Portable Storage Box: Included
Battery Indicator: No

Key Features

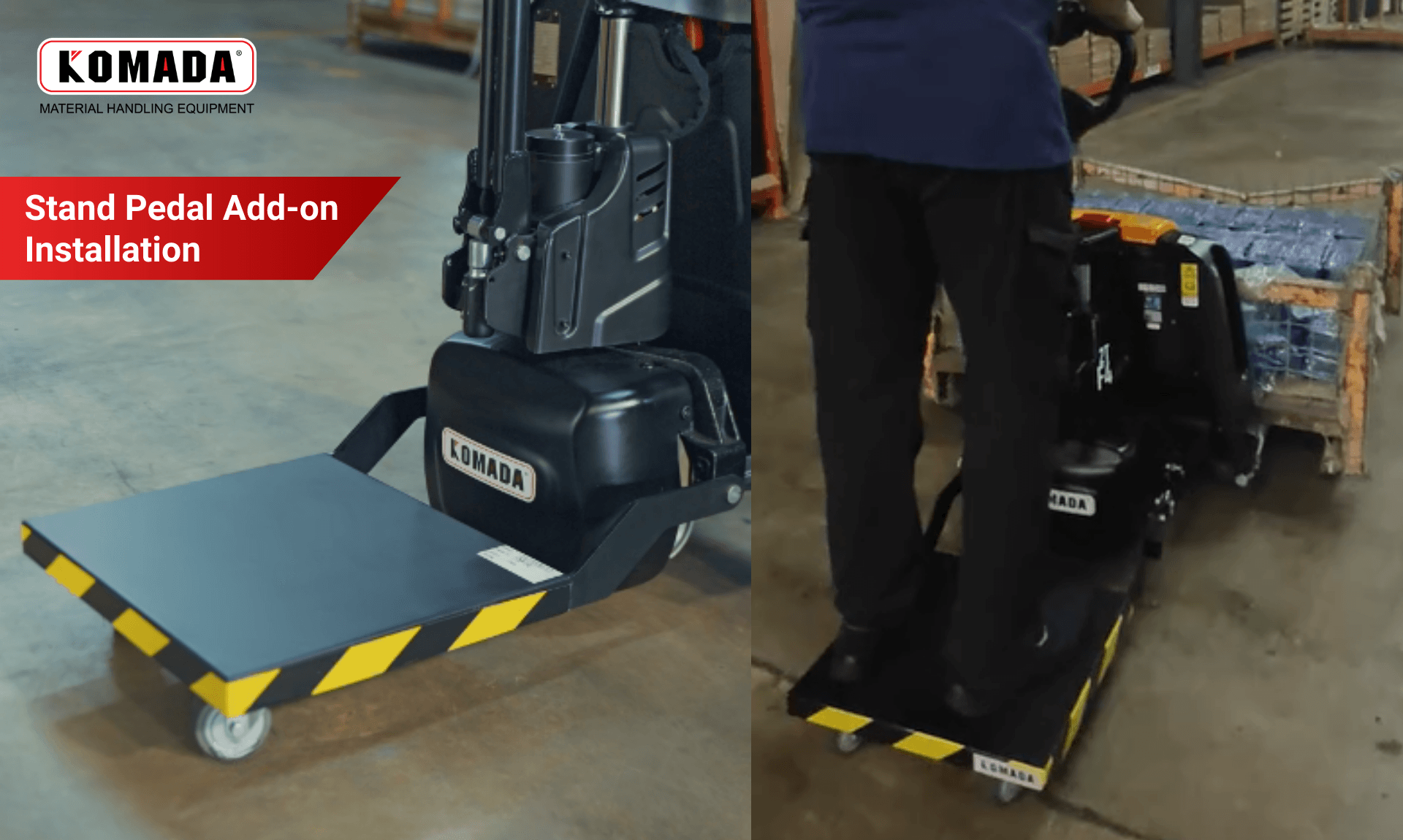

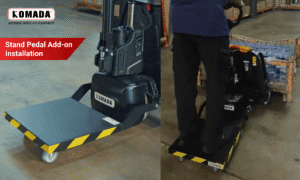

Why Choose the F4 Powered Pallet Jack with Stand Pedal?

F4 Electric Pallet Jack with Stand Pedal is the ideal choice for businesses committed to maximizing operational efficiency while prioritizing worker safety. Its core advantage lies in the Stand Pedal Functionality, which allows the operator to ride, drastically cutting down on walking time and increasing speed over distance. This, combined with the power to achieve $100%$ Efficiency and the Ergonomic Advantage (reducing back strain), minimizes labor costs and injury risks, guaranteeing a superior ROI through enhanced productivity and rapid movement cycles.
